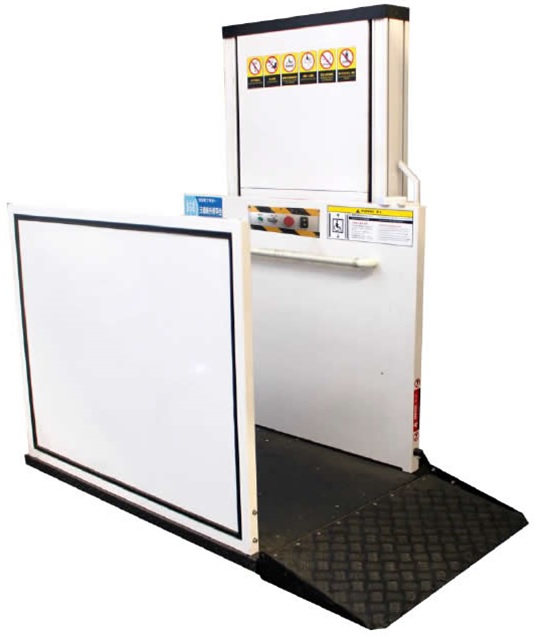

Wheel Chair Lift Internal/External Heat Proof/Weather Proof
| Product overview | GTE2572 | ||
| Max. Platform Height | 7200mm | ||
| Load Capacity | 250kg | ||
| Platform size | 1000*1000 skid proof checkered steel | ||
| Min Platform height | 60mm | ||
| Speed | 0.06~0.1m/s | ||
| Control voltage | 24V/DC | ||
| Power Output | 2.2KW | ||
| Voltage | As per your local Standard (single phase or three phase) | ||
| Drive System | Hydraulic pump station and electric motor | ||
| Control Mode | Automatic travel switch | ||
| Drive Control | Self-resetting system | ||
| Overload | Over current relay protection | ||
| Cabin | Frame: stainless steel, four sides Aluminum alloy. | ||
| Materials | Aluminum rails and guard with spraying plastics. | ||
| Working Condition | Both indoors and outdoors -20°~70°C | ||
| Entrance-Exit Way | It’s customized 90°or 180° | ||
| Installation | No pit installing, easy to install and remove
<3.0m, installed directly on the floor. >3.0m, installed both on the floor and on the wall. |
||
| Switches
|
A. One control panel on the platform B. Install two column switches on ground, which can be fixed at any floor needed. C. Remote control, user can operate lift within 20m.
|
||
Professional Safety Precautions
| 1. | Safety Sensor | Safety sensor below the car. It will stop at once touching obstacles while decline. (See details below） |
| 2. | Safety Interlock | Lock the platform automatically when it is out of control |
| 3. | Emergency Descent | Manual down in emergency when it can’t low down because of power off or other reason (See details below） |
| 4. | Automatic Ramp | The Ramp will pack up automatically when it starts to lift. (See details below） |
| 5. | Aluminum Rails | Strong and durable aluminum extruded section (See details below） |
| 6. | Protection Chain | Helping up-down, keep balance and maintain steady, protecting the safety of a suddenly drop. (See details below） |
| 7. | Over Load Protection | over current relay control, Pressure relief valve prevent overload operation |
| 8. | Noise | Up to American standard ANSI/ASME and Europe standard EN1570
Nylon slide block (See details below） |
| 9. | Hydraulic System | High pressure hydraulic pump station with fixed rib reinforcement |
| 10. | Cylinder and Oil Pipe | anti-explosion valve and spill proof valve |
